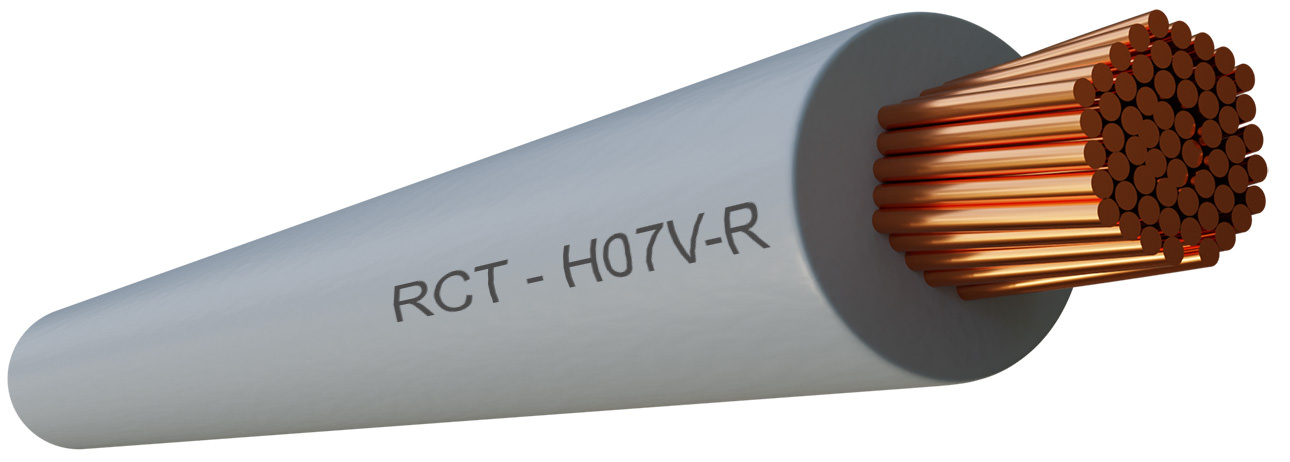

These cables are indicated for executing permanent installations in housing, premises and offices, electrical control panels, as well as domestic and industrial lighting. They are easy to install thanks to their superslide insulation.
Reference Standards
UNE-EN 50525-2-31, EN 50525-2-31 and IEC 60227-3
Applications
Suitable for the following installations
- Outdoor lighting installations
- Earthing Indoor or receiver installations
- Indoor installations in housing
- Indoor installations in housing
- Premises that contain a bath or shower
- Installations on premises with fire or explosion risk
- Installations in premises with special characteristics
- Electrical installations in caravans and in caravans parks

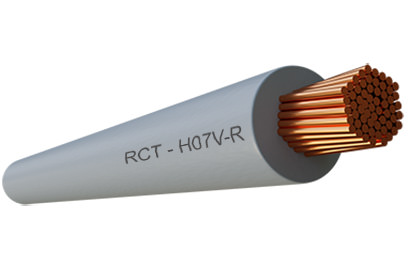

Technical Characteristics
| 1.Conductor | Electrolytic copper conductor (Class II) according to BS EN 60228:2005 (previously BS6360) and EN 60228. |
|---|---|
| 2.Insulation | PVC type TI-1 according to UNE-EN 50363-3, EN 50363-3 |
| Nominal voltage | 450/750 V |
| Test voltage | 2.500 V A.C. |
| Maximum temperature | 70 ºC |
| Colors | According to UNE-EN 50525-1 and EN 50525-1 |
| No flame spread | According to UNE-EN 60332-1-2, EN 60332-1-2 and IEC 60332-1-2 |
Dimensions
| Section (mm2) | Resistance at 20°C (Ohm/km) | External Diameter (mm) | Weight (kg/km) | Class |
|---|---|---|---|---|
1x1,5 | 12,1 | 2,85 | 21 | Eca |
1x2,5 | 7,41 | 3,40 | 30 | Eca |
1x4 | 4,61 | 4,05 | 46 | Eca |
1x6 | 3,08 | 4,50 | 64 | Eca |
1x10 | 1,83 | 5,65 | 107 | Eca |
1x16 | 1,15 | 6,60 | 159 | Eca |
1x25 | 0,727 | 8,25 | 254 | Eca |
1x35 | 0,524 | 9,30 | 341 | Eca |
1x50 | 0,387 | 11,00 | 496 | Eca |
1x70 | 0,268 | 13,00 | 700 | |
1x95 | 0,193 | 16,00 | 993 |
