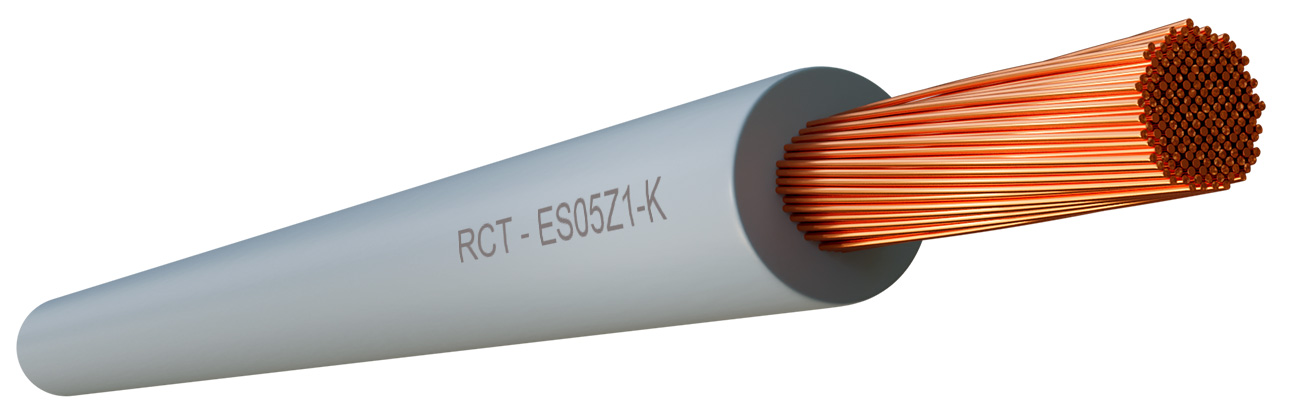

These flexible and halogen-free cables are indicated for permanent installations in public premises and where low fumes and corrosive gas emission is required in case of fire.
Reference Standards
UNE-EN 50525-3-31, EN 50525-3-31 and IEC 60227-3
Applications
Suitable for the following installations:
- Individual by-pass
- Indoor or receiver installations
- Public premises
- Installations in premises with fire or explosion risk
- Appropriate for other installations where greater fire protection is required, even in housing

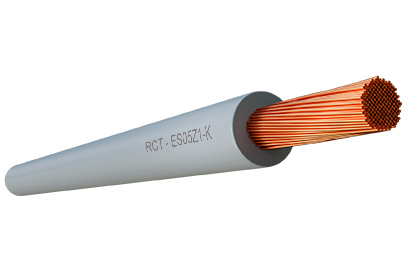

Technical Characteristics
| 1.Conductor | Flexible electrolytic copper conductor (Class V) according to BS EN 60228:2005 (previously BS6360) and UNE 60228 |
|---|---|
| 2.Insulation | Thermoplastic halogen-free material insulation, type TI-7, according to HD 21.15S1 |
| Nominal voltage | 300/500V |
| Test voltage | 2.000 V A.C. |
| Maximum temperature | 70 ºC |
| Colors | According to UNE-EN 50525-1 and EN 50525-1 |
| No flame spread | According to UNE-EN 60332-1-2, EN 60332-1-2 and IEC 60332-1-2 |
| Low halogen content | According to IEC 60754-1 and 60754-2 |
| Low emission of corrosive gases | According to UNE-EN 50267, EN 50267 and IEC 60754-1 and 60754-2 |
| Low emission of opaque fumes | According to UNE-EN 61034-2, EN 61034-2 and IEC 61034-2 |
Dimensions
| Section (mm2) | Resistance at 20°C (Ohm/km) | External Diameter (mm) | Weight (kg/km) | Class |
|---|---|---|---|---|
1x0,5 | 39 | 2,10 | 8 | Cca-s1b,d1,a1 |
1x0,75 | 26 | 2,22 | 10 | Cca-s1b,d1,a1 |
1x1 | 19,5 | 2,75 | 13 | Cca-s1b,d1,a1 |
