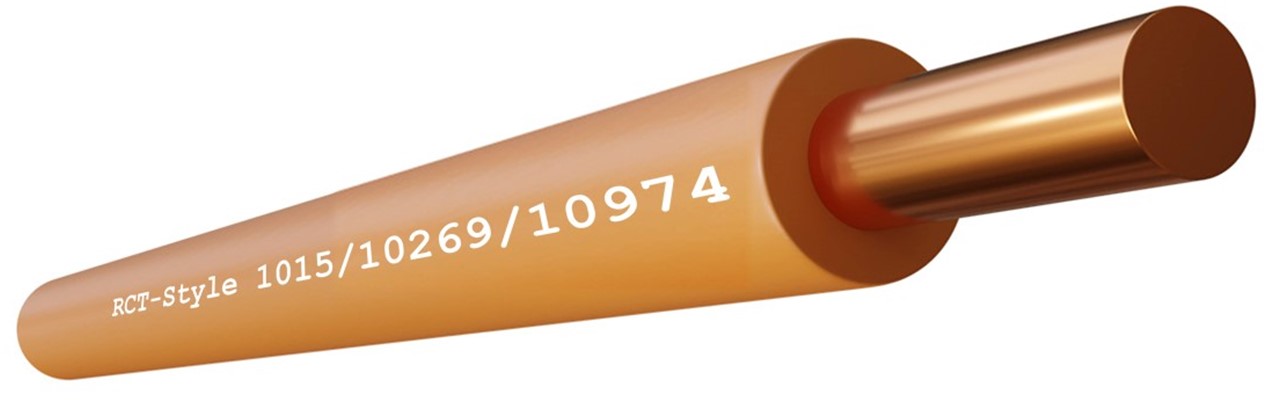

Cables Tri-Rated UL-CSA Styles 1015/10269/10974 H07V2-U are used for internal wiring of control equipment (AWM, Appliance Wiring Material según UL 758) , in those places where special high temperature behaviour is required
Its standardisation, HD 21, BS 6231, UL 758 and CSA 22.2, makes it adequate to be marketed all over the world without technical barriers.
Standards of reference:
BS 6231, UL 758, CSA 22.2, UNE-EN 50525-2-31, EN 5
Applications
Suitable for following installations:
- Internal or external wiring for electrical or electronic equipment.
- Installations in premises with special characteristics: premises at high temperature
Technical Characteristics
| 1.Conductor | Electrolytic copper Class I in accordance with UNE-EN 60228 and EN 60228 |
|---|---|
| 2.Insulation | PVC insulation, type TI-3, according to BS 6231, UL 758 and CSA 22.2, UNE 21031-7 and HD 21.7S2:1996/A1:1999. |
| Nominal voltage HAR | 450/750 V |
| Nominal voltage Style 1015 | 600 V |
| Nominal voltage Style 10269 | 1 kV |
| Nominal voltage Style 10974 | 2 kV |
| Test voltage | 2.500 V A.C. |
| Maximum temperature | HAR 90 ºC y UL105 ºC |
| Colors | According to UNE-EN 50525-1 and EN 50525-1 |
| No flame spread | According to UNE-EN 60332-1-2, EN 60332-1-2 and IEC 60332-1-2 |
Dimensions
| Section (mm2) | AWG | Resistance at 20°C (Ohm/km) | External Diameter (mm) | Weight (kg/km) | Class | Style |
|---|---|---|---|---|---|---|
1x1,5 | 16 | 12,1 | 2,78 | 20 | Eca | 1015 |
1x2,5 | 14 | 7,41 | 3,30 | 30 | Eca | 1015 |
